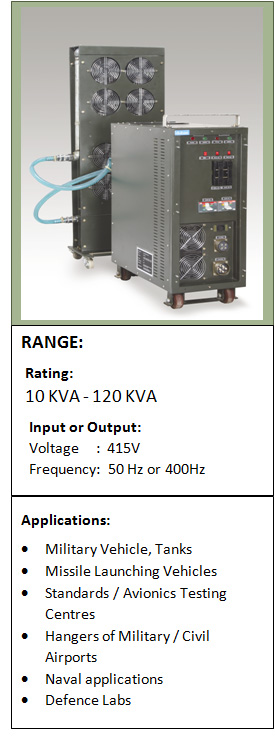

Universal frequency Converters -UFC
Dubas UFC is a high end technology product. This system provides power conversion from 50Hz to 400 Hz or from 400 Hz to 50 Hz in the same converter. This is a bidirectional system with input and outputs interchangeable. The product is built with very high power density. 45 KVA rating system is built within 75 kgs weight. The equipment is water cooled and unique with all features of regular dubas frequency converters.
FEATURES:
- 45 KVA rating in 700 x 600 x 1200 (W x D x H) dimension
- Converter weight restricted to 75Kgs
- Water cooled equipment
- Same converter with source & load interchangeable
- Fully isolated output
- Built for mobile applications, vibration test qualified
- Fully DSP controlled with excellent performance feature for unbalanced loads and transient conditions
- Power Factor Controller & Harmonic suppression on either source ends, using PWM converter
- Adequate protections to provide maximum safety.
- Excellent transient characteristics and recovery
- RS232 / Remote monitoring communication options
