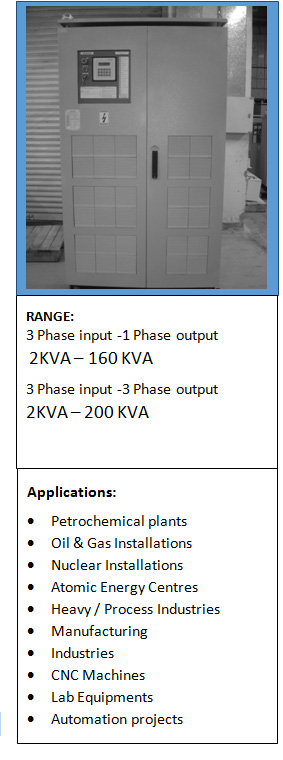

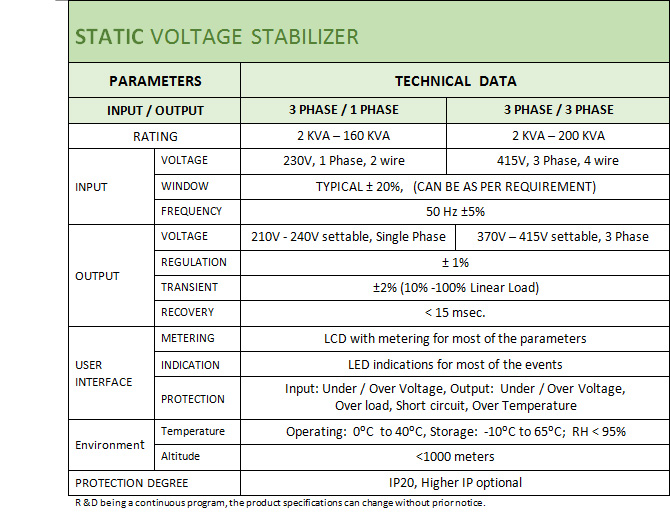

Static Voltage Stabilizer

Dubas Static voltage stabilizer is fully solid state voltage stabilizer with no moving parts. Static stabilizers are preferred over servo stabilizers in absolute critical applications due to high reliability, steady performance, transient levels and transient recovery characteristics. Also, in critical power solution schemes of Industrial / process plants, the static stabilizer is a preferred bypass power path for the UPS System. This is due to the quality of the output of Static stabilizer as well as its reliability.

Dubas Static stabilizer is built on a PWM power conversion technique and has a DSP based digital control. The system has built in isolation transformer to protect the load from electrical noises. The system can be built and configured to client requirement specifications, providing enduring benefits to the user.

FEATURES:

• State of the art technology employing PWM with DSP based Digital Control
• Built in Isolation Transformer for Galvanic isolation
• Modular construction.
• High Short circuit current handling capability.
• Excellent transient characteristics and transient recovery.
• Seismically qualified and tested models for Nuclear installations
• System can be built to suit the application demanding ratings and configurations.
• Available from IP20 to IP54 construction
